DIESEL ENGINE

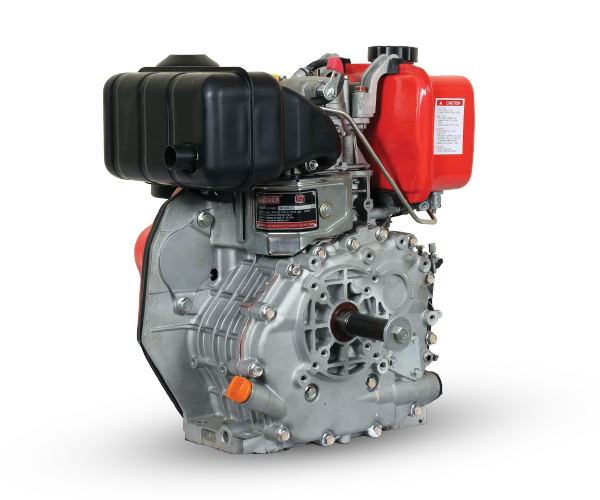

Single Cylinder F 210CD
The F-210s is a compact diesel engine with a single cylinder, four-stroke operation and air-cooling. It has a displacement of 219 cc, weighs 26 kg and uses either Re-Coil or Starter for ignition. The rated output power is 2.2/3 kW/hp at 1500 RPM-speed and fuel consumption is about 300 gm/hp/hr. Fuel tank capacity is around 2.5 liters while lube oil capacity measures up to approximately 0.75 liters making maintenance manageable during operations or servicing periods due to less frequent refilling requirements of these fluids in the engine.
| Model | F-210CD10 |
|---|---|
| Type | Single Cyl, Vertical,4 Stroke, Air Cooled , D.I Diesel Engine (Flange with Gear) |
| Starting System | Re-Coil/Starter |
| Displacement | 219 cc |
| Weight | 26 kg |
| Bore X Storke(MM) | 70X57 |
| Rated RPM-speed | 1500 |
| Rated Output-kw/hp | 2.2/3 |
| Fuel Consumption-gm/hp/hr | 300 |
| Fuel Tank Capacity Ltr. | 2.5 |
| Lube Oil Capacity(ltr) | 0.75 |
